| DO-41/DO-15/DO-201AD /TO-251/TO-252 LowVF SCHOTTKY DIODES Low VF肖特基二極管 | |||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | ||
| 2A系列 | |||||
| SR240L | 2.00 | 0.55 | 40.00 | 100.00 |

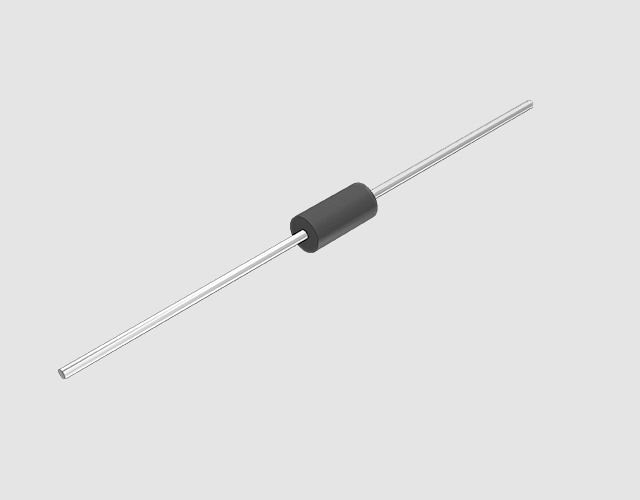

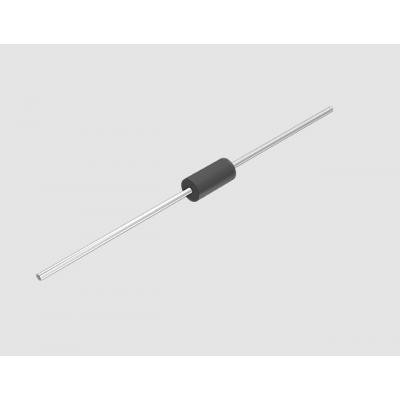

DO-41
DO-15 |
| SR260L | 2.00 | 0.70 | 60.00 | 100.00 | |
| SR2100L | 2.00 | 0.85 | 100.00 | 100.00 | |
所有的二極管特性都會(huì )隨著溫度升高而降低，肖特基二極管的實際工作溫升應小于其最高結溫。
| DO-41/DO-15/DO-201AD /TO-251/TO-252 LowVF SCHOTTKY DIODES Low VF肖特基二極管 | |||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | ||
| 2A系列 | |||||
| SR240L | 2.00 | 0.55 | 40.00 | 100.00 |
DO-41
DO-15 |
| SR260L | 2.00 | 0.70 | 60.00 | 100.00 | |
| SR2100L | 2.00 | 0.85 | 100.00 | 100.00 | |
